Rail Cutting Machine
Send Enquire Now

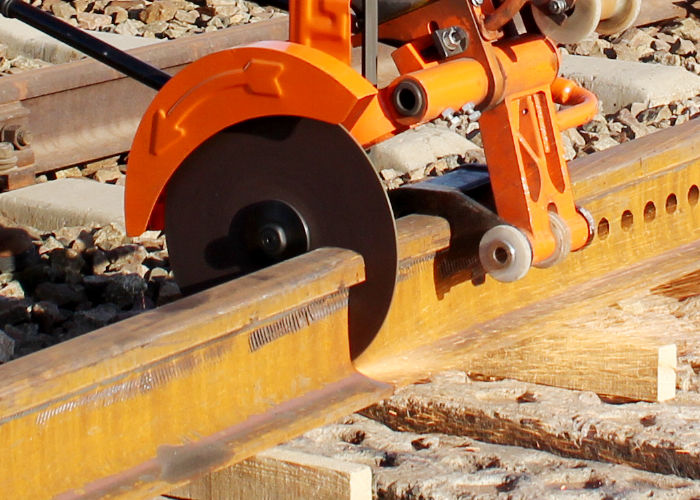

A rail cutting machine is an indispensable piece of track maintenance equipment in modern railway construction, maintenance, and emergency repair operations. Also known as a rail cutting saw or abrasive wheel-type rail cutter, it employs a toothless sawing principle, driving a high-speed rotating abrasive wheel to cut the rail through an oscillating motion along a specific trajectory. It features fast cutting speed, high precision, and excellent cut surface quality, meeting the cutting needs of rails of various specifications.
Depending on the power source, rail cutting machines can be classified into internal combustion, electric, hydraulic, and lithium battery types, among others. They are suitable for various scenarios such as ordinary railways, high-speed railways, subways, municipal rail transit, and industrial tracks, and are widely used in track laying, rail replacement, damaged section removal, length adjustment, and emergency repairs. Their cutting efficiency and quality directly affect the progress of railway projects and the safety and stability of line operations.
As a professional railway maintenance equipment manufacturer, AGICO GROUP supplies a full range of rail cutting machines and related railway tools. Our products cover multiple power models and are compatible with various rail types including 43kg/m, 50kg/m, 60kg/m, and 75kg/m. Our equipment offers advantages such as user-friendly operation, strong adaptability, and low wear, and incorporates ergonomic designs equipped with damping devices and protective covers to ensure operational safety and comfort.
AGICO Abrasive Rail Cutting Machine Models

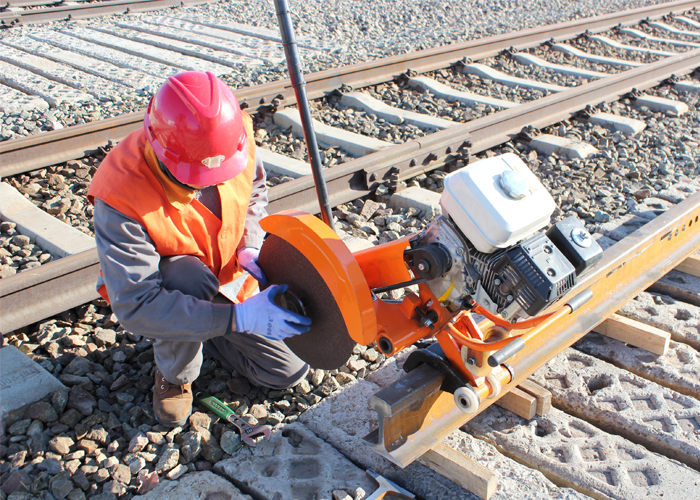

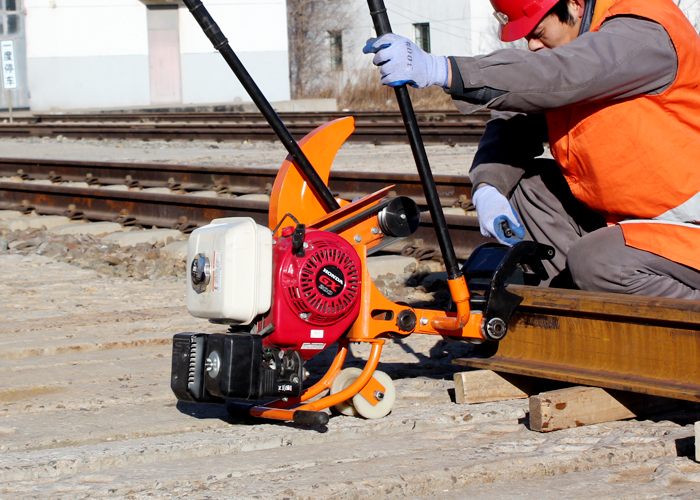

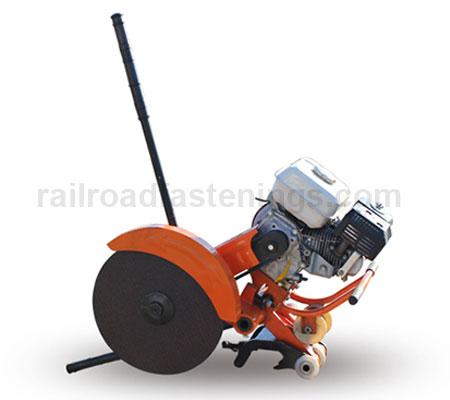

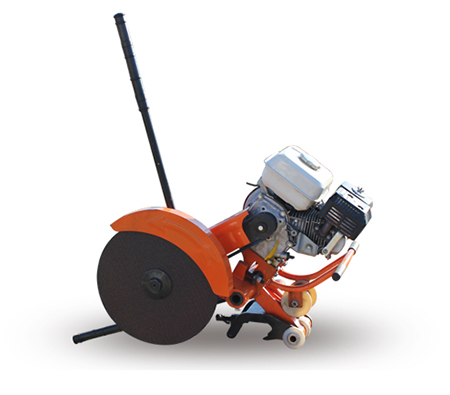

NQG-5III Internal Combustion Rail Cutting Machine
Drive: Internal Combustion Engine
Application: This best-selling cutter is designed for fast, high-quality cutting of standard rails from 43 kg/m to 75 kg/m, including cutting 60 kg/m rails in under 120 seconds. The cutting section quality meets railway industry standards, making it an essential and indispensable machine for major overhaul, maintenance, and emergency repair operations in railway works.
Key Features & Benefits:
- Power & Certification: Equipped with a reliable, high-quality imported Honda GX200 gasoline engine (4.8 kW). It holds both CRCC and CE certifications, guaranteeing performance and safety compliance.
- High Performance & Cost-Effectiveness: Features a fast cutting speed (under 2 minutes for standard rails), a high utilization rate of the abrasive cutting disc, and low operating costs, ensuring excellent cutting quality with high overall efficiency.
- Robust & Portable Design: Its compact, lightweight, and modular double-swing structure makes it easy to handle and operate. Fitted with base rollers, it can be moved smoothly both on the road and on the track for flexible transport and positioning.
- Versatile & Reliable Operation: Capable of safe and easy operation in various harsh conditions (high temperature, severe cold, dust, rain, snow). As a cable-free machine, it is perfectly suited for remote, mountainous, or non-electrified environments. The design uses universal accessories for easy maintenance, backed by worry-free after-sales support.
| Engine: | Honda GX200 gasoline engine |
|---|---|
| Power Output: | 4.8 kW |
| Engine Speed: | 3600 rpm |
| Cutting Wheel Speed: | 400 × 32 × 4 mm |
| Cutting Disc Size: | ≥300 N·m |
| Linear Speed of Cutting Disc: | ≥80 m/s |
| Cutting Time: | ≤120 s for 60kg/m rail |
| Size: | 670 × 600 × 510 mm |
| Total Weight: | 45kg |
| Complimentary Accessory: | 1 cutting disc included with each machine purchase |

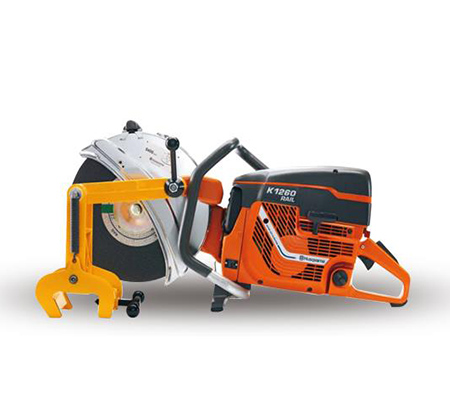

K1270R Portable Internal Combustion Rail Cutting Machine
Drive: Internal Combustion Engine
Application: This newly upgraded, portable rail cutting machine is designed for fast and precise cutting operations. It is ideal for railway maintenance, repairing broken rails on seamless lines, and cutting tasks in long rail welding factories. It is compatible with all standard rail profiles, including rails from 43 kg/m to 75 kg/m and other international specifications.
Key Features & Benefits:
- Portable & Powerful: Features a compact, lightweight, and easy-to-move design. The main unit and the quick-clamping rail assembly can be detached for effortless carrying and on-track operation.
- Fast & High-Quality Cutting: Delivers rapid cutting speeds (e.g., ≤120 seconds for 60 kg/m rails) with high cut-face accuracy. It achieves a rail cross-section verticality tolerance of ≤0.2 mm and a smooth finish that meets usage requirements.
- Efficient & Durable: Engineered to minimize wear on the grinding wheel, extending its service life while ensuring reliable performance for demanding applications.
- Reliable & User-Friendly: Equipped with an imported high-performance internal combustion engine for dependable power. Its clamping mechanism ensures secure and accurate positioning on the rail, making it straightforward to operate in various conditions.
| Engine: | Two-stroke, single-cylinder, air-cooled gasoline engine |
|---|---|
| Engine Power: | 5.8 kW |
| Fuel Tank Capacity: | 1.25 L |
| Cutting Wheel Type: | Double-reinforced cut-off wheel |
| Maximum Peripheral (Linear) Speed: | 100 m/s |
| Rated Spindle Speed: | 5100 ± 100 rpm |
| Cutting Disc Size: | φ350 × φ25.4 × 3.8 / 4.2 mm |
| Cutting Accuracy: |
Perpendicularity deviation of cut face to rail axis ≤ 0.40 mm Flatness deviation of bi-directional joint interface ≤ 0.35 mm |
| Cutting Depth: | 125 mm |
| Cutting Time: | ≤ 120 s (for a 60 kg/m rail) |
| Total Weight: | 28 kg |
| Size: | 850 × 480 × 500 mm |

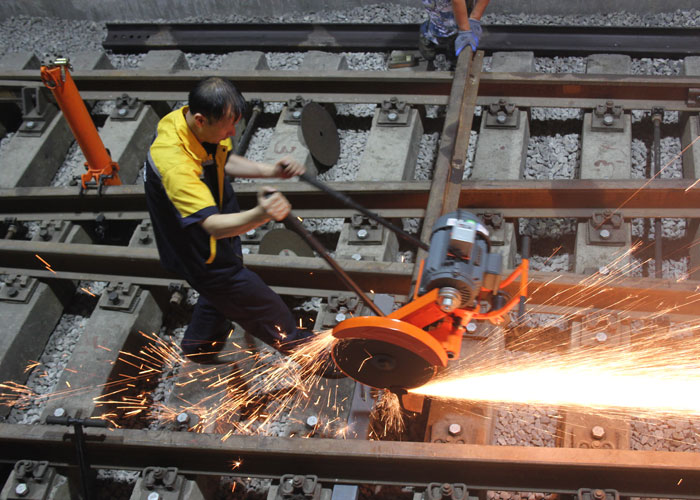

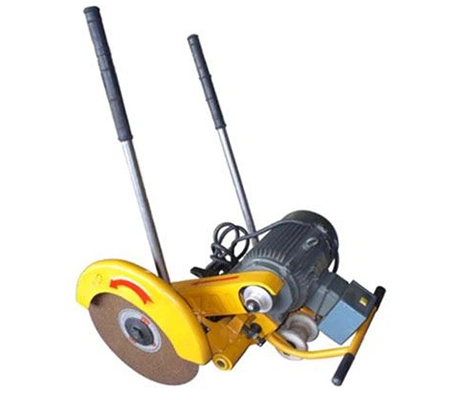

QG-4II Electric Abrasive Rail Cutting Machine
Drive: Electric Motor
Application: This electric-powered abrasive rail cutter is designed for fast, high-quality cutting of standard rails from 43 kg/m to 75 kg/m. It is essential equipment for railway departments performing line overhauls, maintenance, and emergency repairs. The cutting section quality meets railway industry standards.
Key Features & Benefits:
- Fast & Precise Cutting: Achieves rapid cutting speeds (e.g., cuts 60 kg/m rails in ≤120 seconds) with a smooth and precise cut surface. The innovative "toothless saw" swing mechanism minimizes contact length with the rail, reducing wheel wear and significantly enhancing grinding wheel utilization rate and work efficiency.
- Safe & Reliable Operation: The electric drive eliminates explosion risks. It is built with multiple safety features, including a protective guard, an overheating protection system, and an emergency stop switch.
- Environmentally Friendly: Produces zero emissions, operates with low noise, and offers a high degree of automation for cleaner and quieter operation.
- User-Friendly & Versatile: Features a stable power supply, simple operation, easy movement, and a wide application range, making it safe and convenient to use in various scenarios.
| Motor: | Y112M-2 |
|---|---|
| Power: | 3.0 / 4.0 kW |
| Speed: | 2850 rpm / 2880 rpm |
| Spindle Speed: | 3060 rpm / 3080 rpm |
| Cutting Wheel Size: | φ400 × φ32 × 4 mm |
| Peripheral Speed: | ≥ 70 m/s |
| Cutting Time: | ≤120 s (for 60 kg/m rail) |
| Cutting Disc Service Life: |
For 50 kg/m rail: ≥ 4 cuts per disc For 60 kg/m rail: ≥ 3 cuts per disc |
| Total Weight: | 54 kg / 64 kg |
Accessories and Consumables Ecosystem

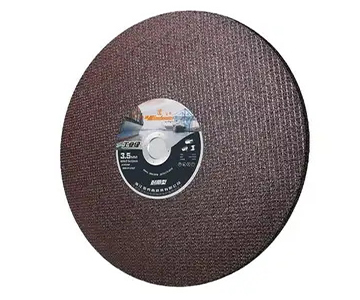

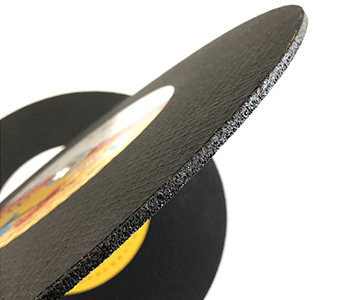

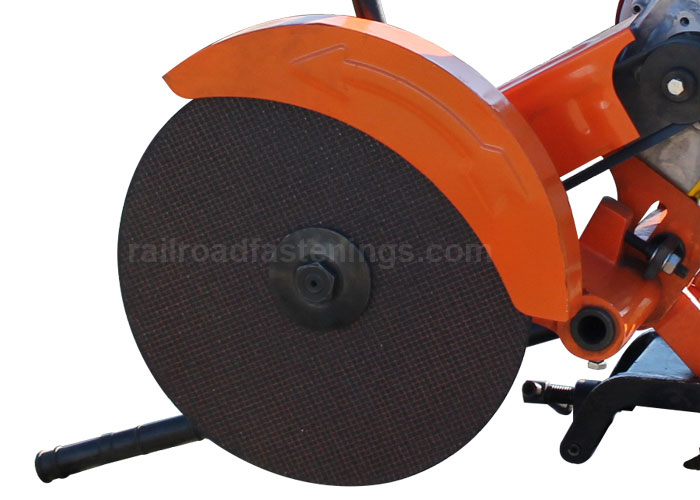

Cutting Wheels
Specialized grinding wheels: Premium brown alumina with reinforced resin bond, 40% more efficient than standard wheels.
Extended service life: Single wheel completes 12–15 cuts on 60kg/m rail.
Safety certified: ISO603 tested, maximum working linear speed of 80m/s.
Complete specifications: Full range of φ350, φ400, φ450mm sizes.
Maintenance Kits
Quick repair toolkit: Includes frequently replaced seals, bolts, and other wear parts.
Specialized lubricants: Long-lasting grease specifically formulated for rail cutting conditions.
Precision calibration tools: Ensure equipment maintains factory precision standards over time.
Advantages of Rail Cutter
Revolutionary Cutting Efficiency
Industry-leading cutting speed: Utilizing an optimized power transmission system, cutting a standard 60kg/m rail takes only 3–4 minutes, improving efficiency by over 50% compared to traditional equipment.
Quick installation system: Patented clamping device enables secure fixation of the equipment onto the rail within 90 seconds, with no special tools required.
Continuous operation capability: Enhanced cooling system allows the machine to perform over 15 standard cuts consecutively without needing to cool down.
Military-Grade Cutting Precision
Ultra-precise guidance system: Dual linear guides combined with precision ball screws achieve cutting surface perpendicularity error ≤ 0.3mm and flatness of Ra ≤ 12.5μm.
Intelligent depth control: Digital cutting depth preset and display system prevents over-cutting or insufficient cutting.
Vibration suppression technology: Active damping system reduces operational vibration by 70%, ensuring a smooth and precise cutting process.
Unmatched Durability
Extended core component lifespan: Main shaft bearings use Swedish SKF heavy-duty series with a design life of 10,000 hours; gears undergo carburizing and quenching, increasing wear resistance by threefold.
Full-condition adaptability: Equipment tested for cold starts at -30°C and continuous operation at +55°C, suitable for various global climate conditions.
Enhanced anti-corrosion treatment: Key structural components undergo triple anti-corrosion treatment (galvanizing + coating + sealing), ensuring long-term use in damp or saline-alkali environments.
Intelligent Operational Experience
Ergonomic design: Operating force reduced by 40%, with adjustable control handle height and angle to suit operators of different statures.
Status Monitoring System (High-end Model): Real-time display of cutting parameters and equipment status, equipped with fault self-diagnosis and early warning functions
Safety interlock protection: Multiple safety protection devices ensure automatic shutdown under abnormal conditions, safeguarding both operators and equipment.
Applications

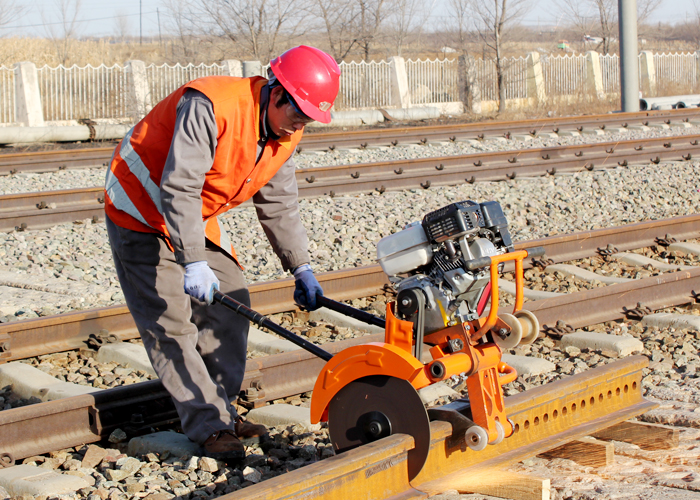

National Railway Maintenance
AGICO rail cutting machines have become designated suppliers for multiple bureaus under China State Railway Group. During pre-holiday peak travel maintenance periods, our equipment excels:
- Single unit performs 25–30 cuts per day on average.
- 99.2% uptime over 30 days of continuous operation.
- Helps track departments increase track possession time utilization by 35%.
Urban Rail Transit Maintenance
Customized solutions for subway overnight maintenance windows (typically only 3–4 hours):
- Low-noise models meet urban environmental requirements.
- Quick setup reduces preparation time.
- High-efficiency cutting ensures more work completed within limited windows.
Railway Emergency Response
AGICO emergency repair kits feature:
- Rapid deployment within 10 minutes.
- All-weather operational reliability.
- Integrated emergency lighting and safety warning system.
- Proven critical performance in multiple major railway accident repairs.
Overseas Railway Projects
Our equipment exports to 56 countries worldwide, offering:
- Safety certifications compliant with local standards (CE, ISO, etc.).
- Reinforced models for tropical, frigid, plateau, and other special environments.
- Multilingual interfaces and training materials.
Why Choose Us?

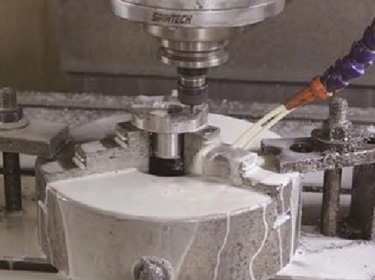

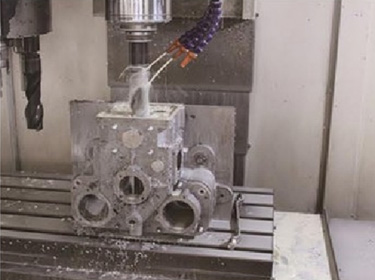

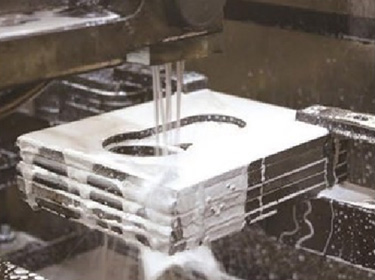

Advanced Manufacturing, Reliable Quality
Utilizes intelligent human-machine engineering design, equipped with automated production lines and precision testing equipment to ensure stable and reliable product performance. All product lines are ISO9001 certified and comply with railway industry standards, with the capability for scaled rapid delivery.
In-Depth R&D, Safety & Intelligence
A professional engineering team continuously optimizes products, integrating status monitoring, fault self-diagnosis, and multiple safety protection systems (including emergency lighting and automatic shutdown), delivering a more precise, durable, and safe operational experience.
Comprehensive Services, Flexible Partnerships
Offers a 24-month warranty on main units and a 36-month warranty on core components, supported by 12 global spare parts centers for rapid response. Provides a multilingual three-tier training system and supports various partnership models including direct purchase, financial leasing, and trade-in programs.
