Hydraulic Rail Bender
Send Enquire Now

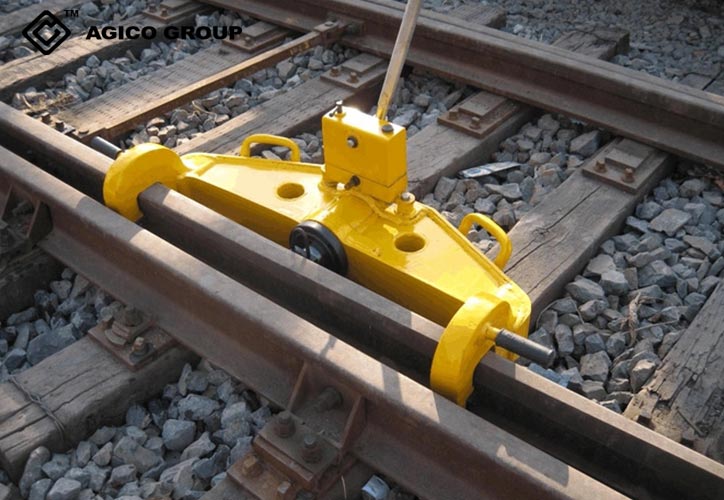

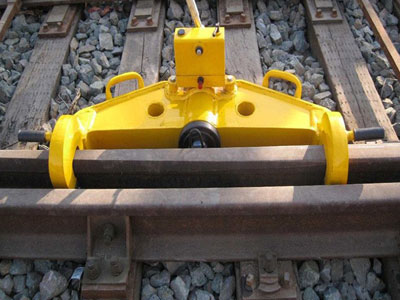

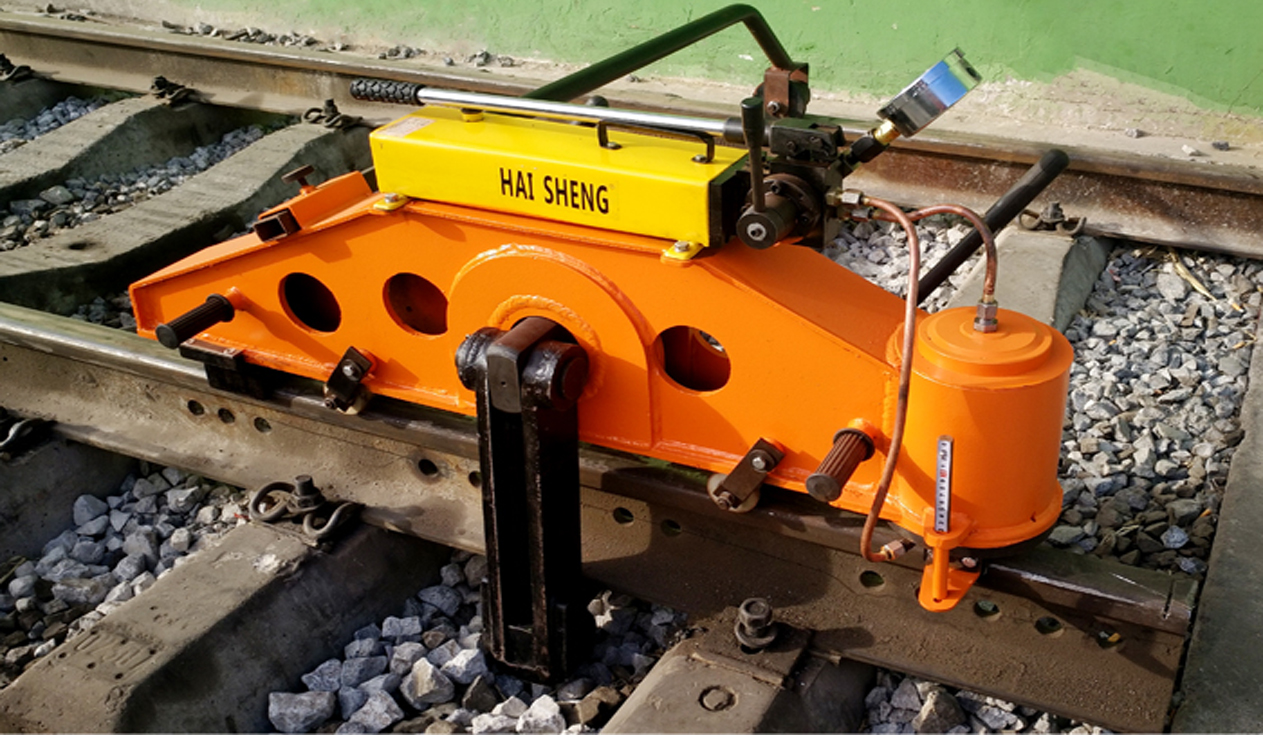

The Hydraulic Rail Bender (also known as a Hydraulic Rail Straightener) is a critical piece of railway maintenance equipment that operates on hydraulic principles. It is designed for the precise bending, straightening, and shaping of steel rails. By applying controlled force, it effectively corrects deformations such as bending, lateral curvature, wave wear, or warping caused by long-term use, temperature fluctuations, or external impacts. This process restores the rails to their designed linear or curved alignment, ensuring track stability, operational safety, and meeting the high-precision requirements of modern railway engineering.
AGICO Rail Bender Models

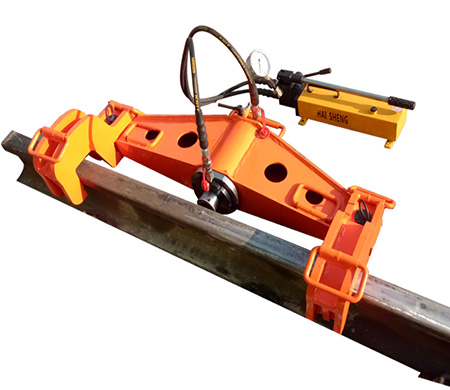

YZG-550 Double-Hook Hydraulic Rail Bending Machine
Application: This specialized hydraulic tool is designed for straightening (or bending) rails, switch rails (point rails), AT rails, and guard rails on-site. It is suitable for a wide range of rail profiles, including 43 kg/m to 75 kg/m, UIC 49 to UIC 60, and AREMA 85RE to 150RE specifications, making it ideal for correcting horizontal defects on thermite-welded long rails and turnouts without disassembly.
Key Features & Benefits:
- Bidirectional Bending Capability: The unique double-hook design enables effective straightening and bending in both directions, allowing for precise correction of rail alignment directly on the track.
- Portable & Maneuverable: Features a split-type structure where each component weighs no more than 75 kg, ensuring easy handling, transportation, and assembly/disassembly in the field.
- Efficient Operation: With a piston stroke of up to 120 mm, it reduces the number of tool repositioning steps required, significantly shortening the time needed for single-point straightening operations.
- Robust & Reliable Performance: Constructed from special steel with a compact and lightweight body, it delivers strong bending force and reliable performance for demanding track maintenance tasks.
| Rated Straightening Force | 550 kN |
| Nominal Working Pressure | 57 MPa |
| Piston Stroke | 120 mm |
| Pump Plunger Bore × Stroke | Φ14 × 40 mm |
| No-Load Advance per Stroke | 1.5 mm/stroke |
| Main Beam Weight | 75 kg |
| Hook Arm Weight | 25.5 kg |
| Hydraulic Pump Station | 14 kg |
| Other Accessories | 9.5 kg |

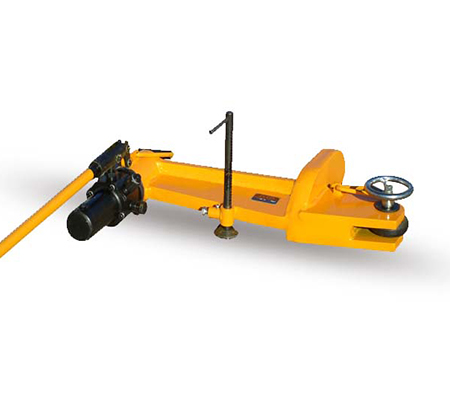

YZG-530 Hydraulic Rail Bending Machine
Application: This manual hydraulic bender is designed for the horizontal straightening or bending of light to medium-weight rails. It is suitable for rail profiles up to 50 kg/m, including equivalents such as AREMA 60–100 lb and UIC 49–54 sections.
Key Features & Benefits:
- Precise & Controlled Operation: The bending amount can be finely adjusted within a 3mm range through precise control of the hydraulic pump, allowing for accurate correction of rail alignment.
- Lightweight & Portable: Forged from special-grade steel, the machine offers a robust yet compact and lightweight structure (total weight 58 kg). This design significantly reduces operator workload and facilitates easy assembly, disassembly, and transportation.
- Enhanced Safety: Equipped with triple safety mechanisms including overload protection, hydraulic locking, and emergency braking, ensuring stable and reliable performance during operation.
- Efficient & User-Friendly: Its combination of reliable performance, ease of use, and efficient operation makes rail straightening tasks easier and more productive for maintenance crews.
| Maximum Straightening Force: | 530 kN |
| Nominal Working Pressure: | 52 MPa |
| Piston Stroke: | 70 mm |
| Pump Plunger Bore × Stroke: | Φ14 × 40 mm |
| No-Load Advance per Stroke: | 1.6 mm/stroke |
| Overall Machine Weight: | 58kg |

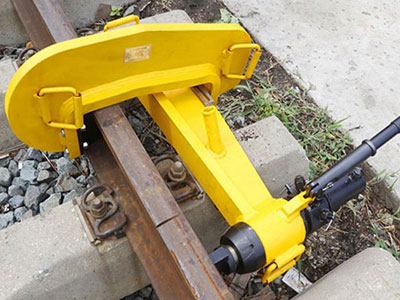

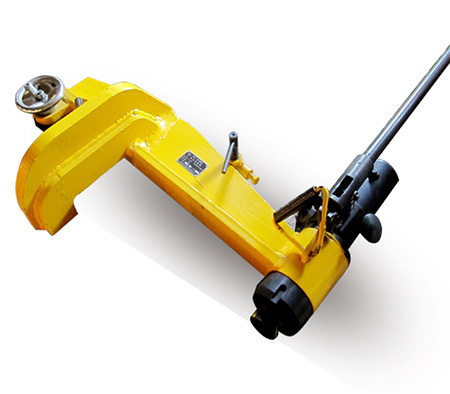

YZG-750III Hydraulic Rail Bending Machine
Application: This heavy-duty hydraulic bender is designed for the lateral (horizontal) straightening or bending of a wide range of rail types, including profiles from 43 kg/m to 75 kg/m, UIC 49 to UIC 60, and AREMA 85RE–150RE. It is suitable for thermite-welded long rails and switch rails and supports both on-rail and under-rail operations.
Key Features & Benefits:
- High Power & Durability: Delivers a maximum bending force of 750 kN (nominal working pressure 52 MPa), capable of handling heavy rails. The entire machine frame is welded from special alloy steel, ensuring reliable quality and stable operation in extreme environments from -30℃ to 50℃.
- Split-Type Design: The hydraulic power unit is separate from the main assembly, connected only during operation. This design significantly eases transportation and simplifies maintenance.
- Safe & Reliable System: Equipped with multiple safety valves, including a working return valve and an emergency relief valve, which can instantly release pressure in case of hydraulic failure, ensuring operator safety.
- Compact & Versatile: Features a compact structure, is lightweight, and is easy to assemble and disassemble on-site, offering flexibility for various track straightening tasks.
| Maximum Bending Force: | 800 kN |
| Rated Straightening Force: | 650 kN |
| Nominal Working Pressure: | 52 MPa |
| Piston Stroke: | 70 mm |
| Pump Plunger Bore × Stroke: | Φ14 × 40 mm |
| No-Load Advance per Stroke: | 1.6 mm/stroke |
| Overall Machine Weight: | 80 kg |
| Size: | 850 × 520 × 240 mm |

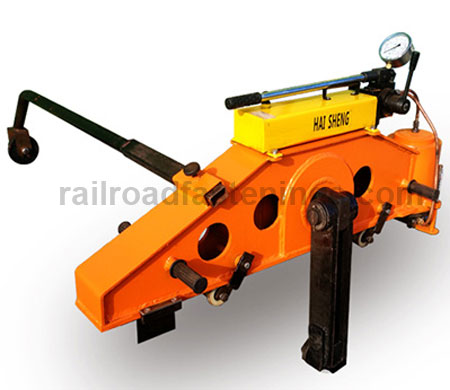

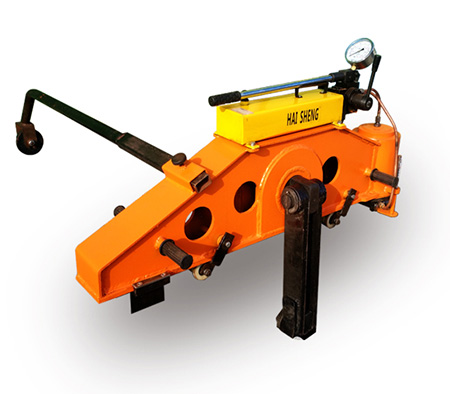

YPG-1000 Hydraulic Vertical Rail Bender
Application: This machine is specifically designed for the vertical straightening (alignment) of rail joints on various types of railway lines, ensuring the straightness of welded joints and rail ends for proper connection. It is suitable for maintenance, overhaul, and emergency repair operations conducted by engineering departments.
Key Features & Benefits:
- Powerful Vertical Correction: Delivers a vertical straightening capacity of up to 4 mm per operation with high working efficiency, featuring a no-load advance of approximately 1.5 mm per stroke.
- Efficient On-Site Operation: Capable of performing vertical alignment directly on bent or depressed rail joints without the need to remove fishplates, significantly improving operational efficiency by eliminating disassembly steps.
- Portable & User-Friendly: Designed with a compact structure and equipped with travel wheels for easy movement and handling on site. It is characterized by simple operation, safe use, and reliable quality.
- Wide Compatibility: Suitable for vertical straightening of a broad range of rail types, including profiles from UIC 49 to UIC 60 (or AREMA 85RE–150RE), thermite-welded long rails, and switch rails.
| Maximum Vertical Straightening Force: | 1100 kN |
| Rated Vertical Straightening Force: | 1000 kN |
| Maximum Working Pressure: | 52 MPa |
| No-Load Advance per Stroke: | 1.5 mm/stroke |
| Adjustable Fulcrum Range: | ±100 mm |
| Maximum Operating Force: | 436 kN |
| Overall Machine Weight: | 190 kg |
| Size: | 1200 × 300 × 660 mm |
Advantages Of AGICO Rail Bender
1. Superior Straightening Power & Versatility
Equipped with a high-efficiency hydraulic system delivering thrust up to 300kN, capable of swiftly correcting severe bending and deformation.
Wide compatibility with rails from 30kg/m to 75kg/m, including standards for heavy-haul, high-speed, and urban transit systems.
Modular design allows for quick adaptation to various rail profiles via interchangeable jaws.
2. Exceptional Precision & Results
Features advanced pressure and stroke control systems with digital feedback, ensuring application accuracy within ±2%.
Achieves high straightness that meets rigorous industry standards, guaranteeing track stability and extending rail service life.
3. Enhanced Safety & Ergonomic Operation
Integrated with multiple safety protections, including overload protection and anti-rebound mechanisms.
Designed with a compact structure and centralized, intuitive controls, enabling efficient one-person operation after minimal training.
4. High Efficiency & Portability
Significantly reduces straightening cycle time, improving workflow efficiency by over 50% compared to traditional methods.
Portable and modular variants with wheeled bases facilitate quick deployment and mobility in complex sites like tunnels or remote locations.
5. Robust Durability & Low Lifetime Cost
Mainframe constructed from high-strength alloy steel with robotic welding for maximum integrity under heavy loads.
High-quality hydraulic components ensure reliable performance, low failure rates, and minimal maintenance requirements, reducing total cost of ownership.
6. Extreme Environment Adaptability
Specialized models are engineered to operate reliably in extreme temperature ranges, from -40°C to harsh desert conditions.
7. Outstanding Value Proposition
Delivers up to 70% labor savings versus mechanical methods.
Offers a comprehensive model range and customization options, providing direct-manufacturer quality and support at competitive prices.
Application
The AGICO Hydraulic Rail Bender is an indispensable partner throughout all stages of a rail's lifecycle:
- New Line Construction & Rail Installation: Quickly and accurately bending straight rails on-site to the required curve radius, perfectly aligning with the track design and eliminating connection stress.
- Routine Maintenance & Correction: Efficiently repairing lateral bends (throw-off) and vertical deformations (unevenness) caused by thermal stress, foundation settlement, or vehicle impact, restoring track smoothness.
- Turnout Area & Special Section Maintenance: Performing precise bending and adjustment of switch blades and stock rails within turnouts, ensuring flexible switching and operational safety.
- Overhaul & Renovation: Pre-bending new rails and straightening old rails for reuse during rail replacement projects, saving significant material and costs.
- Emergency Response & Recovery: Quickly performing on-site emergency correction of damaged or deformed rail sections after derailment incidents, enabling faster line reopening.
Contact us for product catalog
Why Choose AGICO
Choosing AGICO means you receive more than just a high-quality machine:
- Comprehensive Technical Consulting: Our engineering team provides free selection guidance to ensure the equipment perfectly matches your working conditions.
- Professional Operator Training: We offer detailed on-site or video training to ensure your team can safely and efficiently utilize the equipment's full potential.
- Rapid Spare Parts Supply: With a global network of spare parts centers, we commit to quick supply support for core hydraulic components and wear parts, minimizing your downtime.
- Reliable After-Sales Support: All equipment comes with a 12-month quality warranty, backed by lifelong technical service support.
